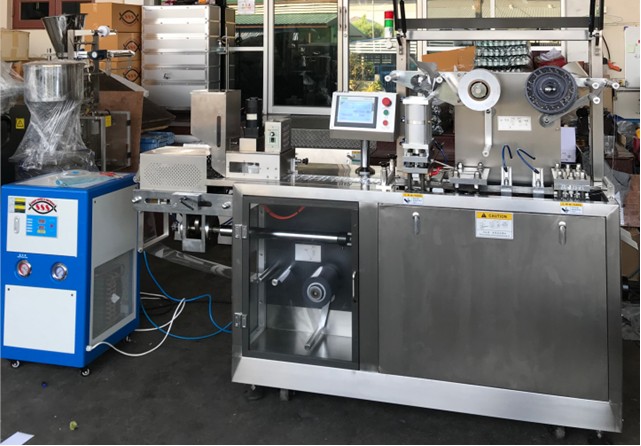

1. Equipment photos : (Photo for reference only!!!)

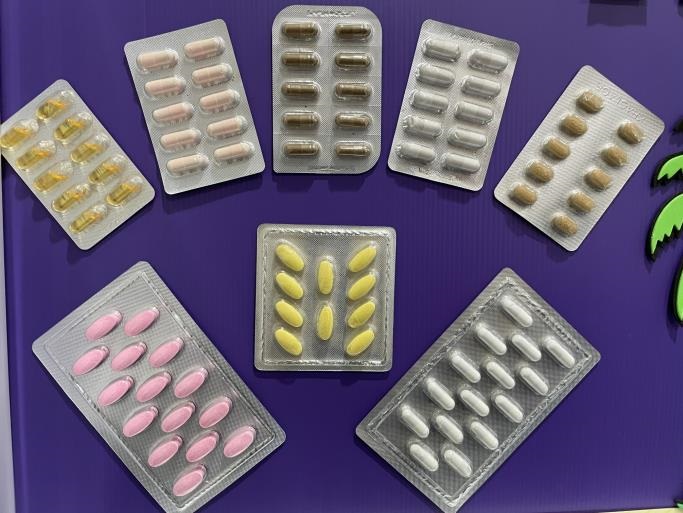

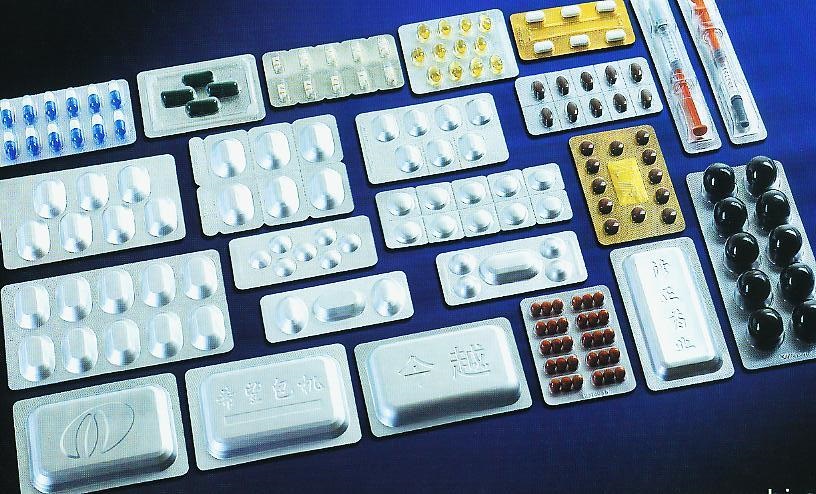

2. The sample :
Main technical parameter :
| Model | DPP-180F |
| Punches Frequency: | 10-35times/min |
| Production Capacity: | 1200-4200pcs/hour (W80XL125mm two plates one time) |
| Max. Forming area and depth : | L170 XW110 XH15mm |
| Stroke travel range: | 50-120mm (designed as per user’s requirement) |
| Standard plate size: | 80x57mm (designed as per user’s requirement) |
| PVC Rigid sheet: | 0.25-0.5×180mm |
| PTP Aluminum fiom: | 0.02-0.035×180mm |
| Dialysis paper: | 50-100g×180mm |
| Air pressure: | 0.6Mpa-0.8Mpa |
| Air compressed required: | ≥350L/min |
| Power Supply: | 380VAC, 3ph, 50Hz 3L+N+PE |
| Total power: | 4.2KW |
| Weight: | 980Kg |
| Machine size: | L2600*W640*H1600mm |

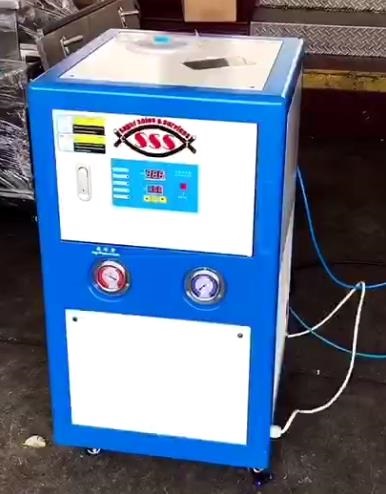

| 1.1 Chiller:
|
Model | QE-01A |
| Refrigerating Capacity | 3200 Kcal/h | |
| Cryogenic Temperature | ≤40° | |
| Power Supply | 220VAC 50HZ | |
| Power | 1.3KW | |
| Machine size | W500XL600XH850mm | |
| Weight | Approx. 80kg | |
| Note: used with bubble cover machine to cool the molding and heat sealing molds! | ||
